PDW Payload Rack Installation on Omega/Atlas

Set up the rack as shown in the beginning of the installation video. https://www.youtube.com/embed/wzhUA4hYXsY

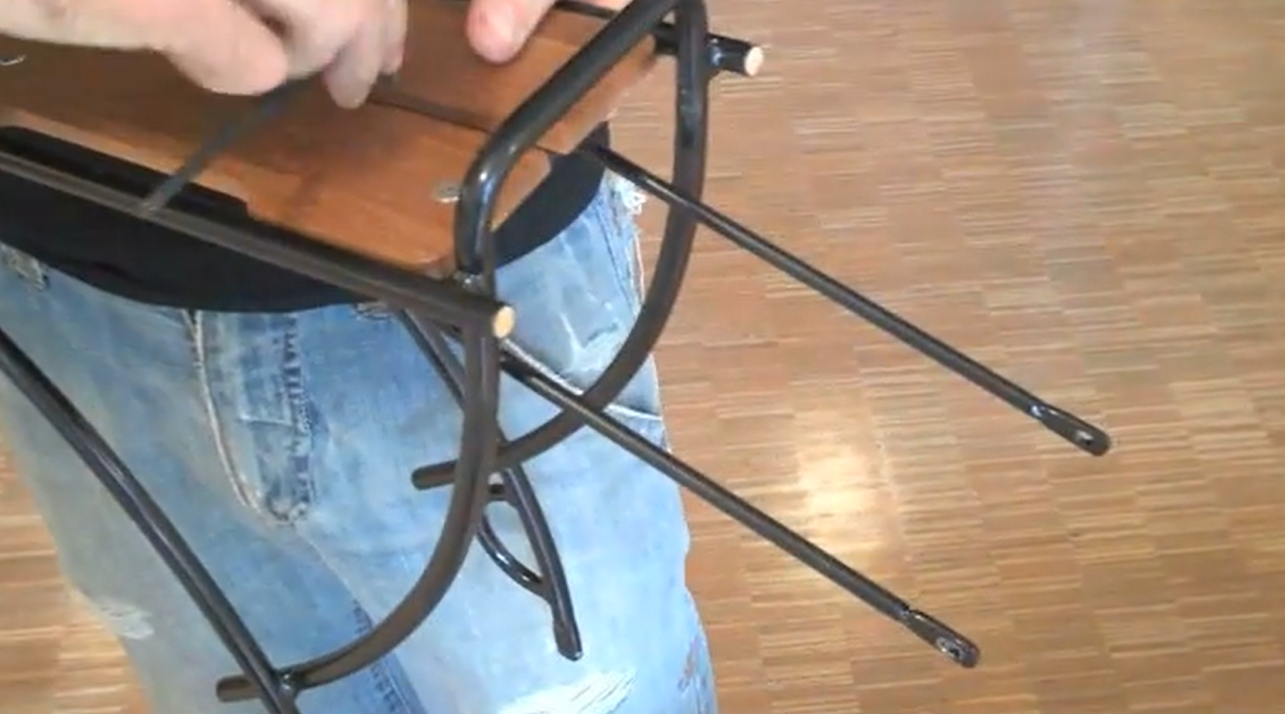

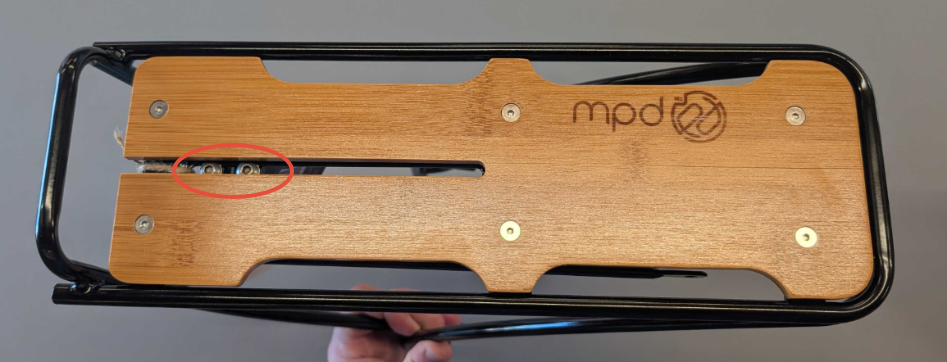

Loosen the hardware for the upper stay and swing it forwards.

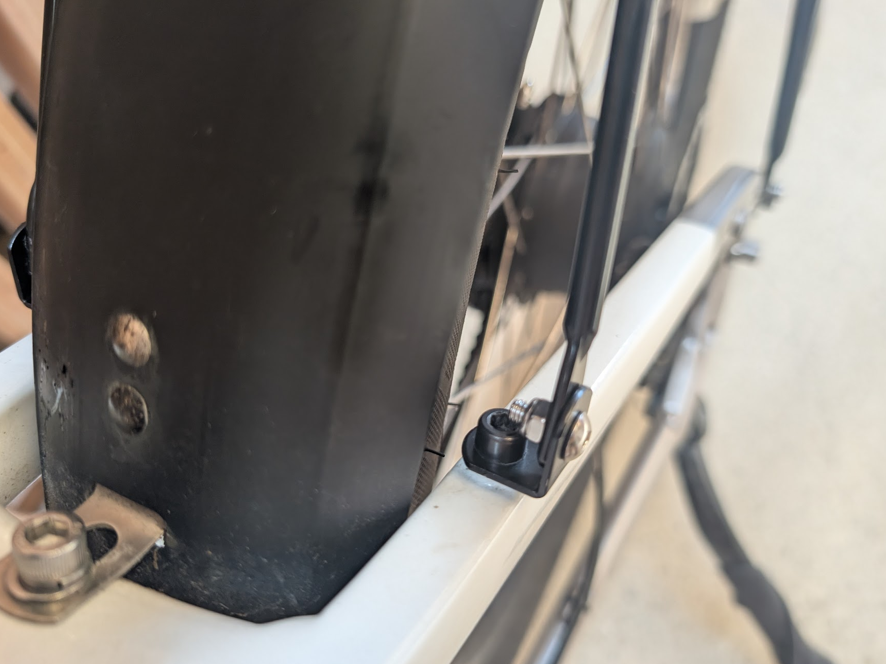

Install the L brackets we included onto the Omega frame as shown below.

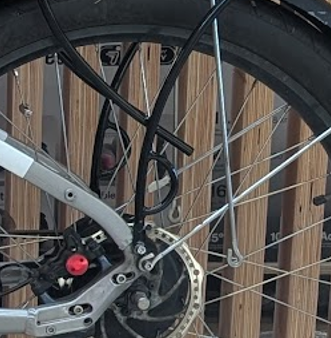

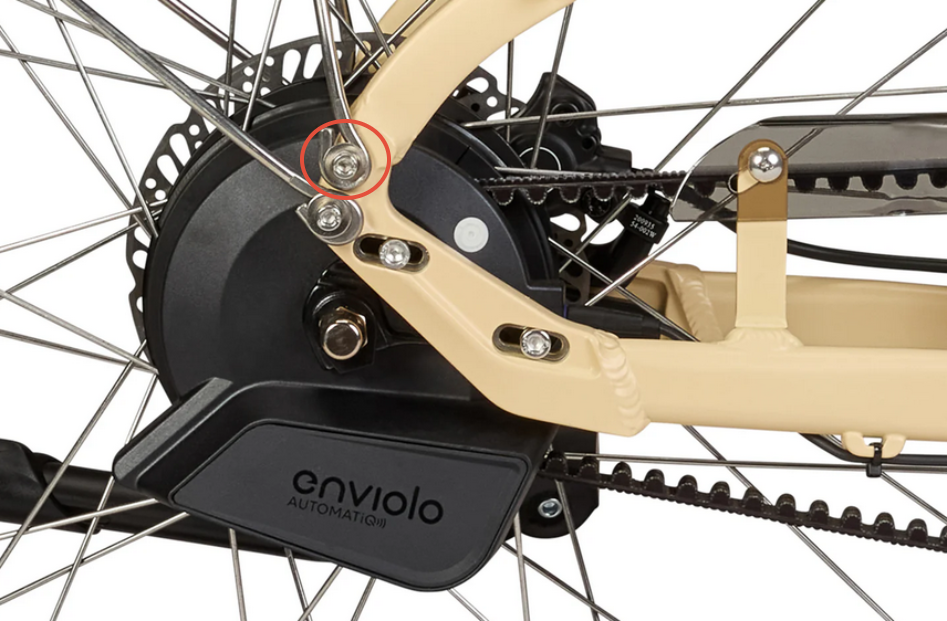

On the rear fender remove the hardware for the middle fender strut.


Put the hardware through the fender strut and the rack strut. Thread it back into the frame. It is most ideal to put the rack inboard of the fender. NOTE: The image shows the middle rack strut not attached but yours will be.

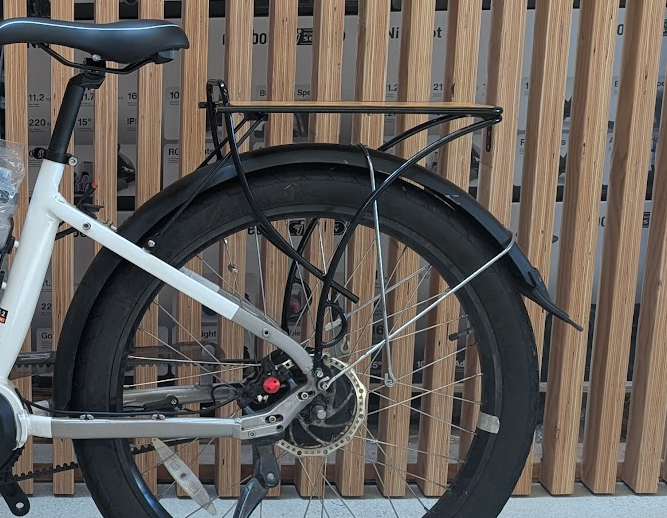

Attach the upper rack struts to the L brackets on the frame.


Adjust the level of the rack as shown in the video link provided above.
